Boeck  |  SKU: TSL3-AD-MEDIUM

Special recording suitable for Tesla Model 3/Tesla Model Y

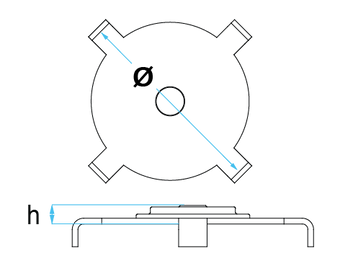

icon_technical_drawing_of_product
hole spacing
b = 141 mm
weight
0.45 kg
additional info
passend auf Gummiteller mit: Ø = 120-140 mm

Prices are only visible to dealers. Please log in. Not a customer yet? Please register using our online form.

Create account Login

Lifting a Tesla Model 3 can cause significant damage to the battery. The rubber pad on most vehicle lifts is too wide for the vehicle's lifting point and protrudes into the battery area. The protective cover and the battery itself can be dented.

For this reason, we have developed a universal solution for 2-post lifts and scissor lifts specifically for this type of car. It is available in two sizes and is designed for professional workshop use. It can also be used on a jack.

Material:

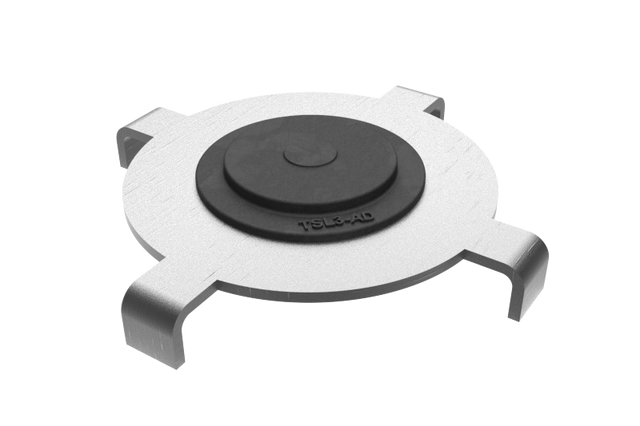

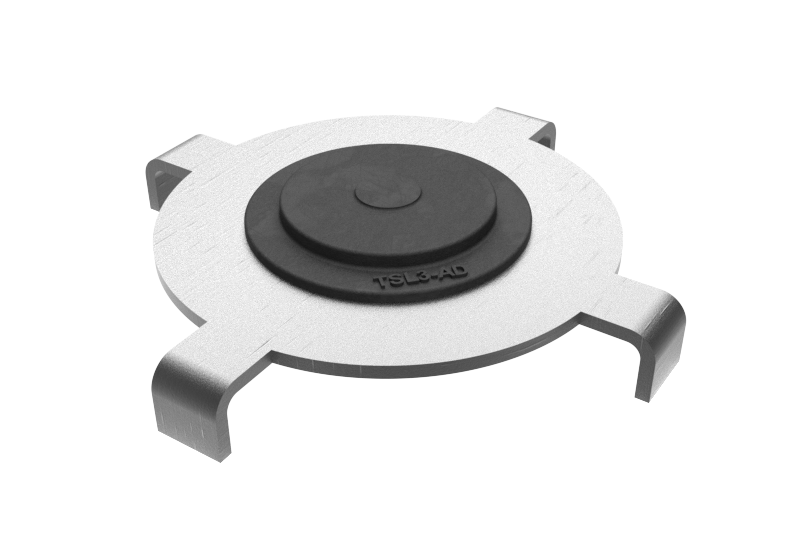

The adapter consists of a galvanized, high-strength metal plate and a rubberized pad. The total height is only 13mm. The rubberized pad has a diameter of 60 mm and also protects the paint on the underbody.

Application 2-post lift:

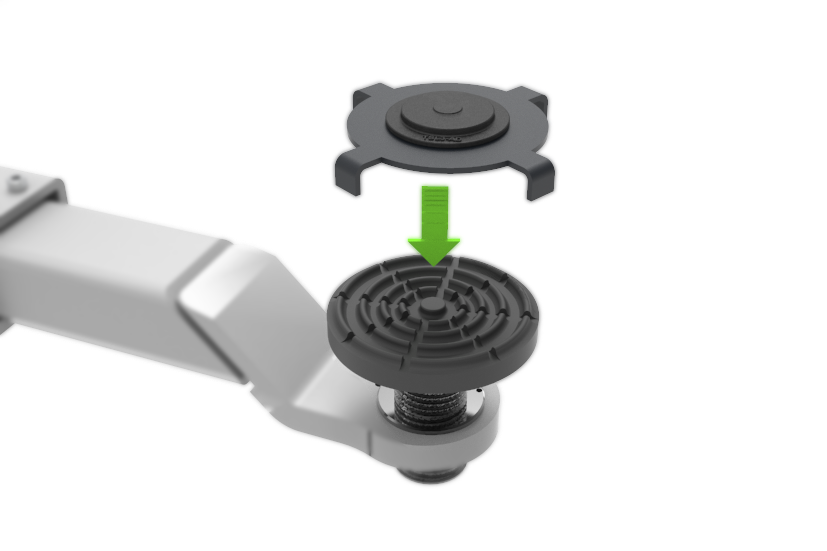

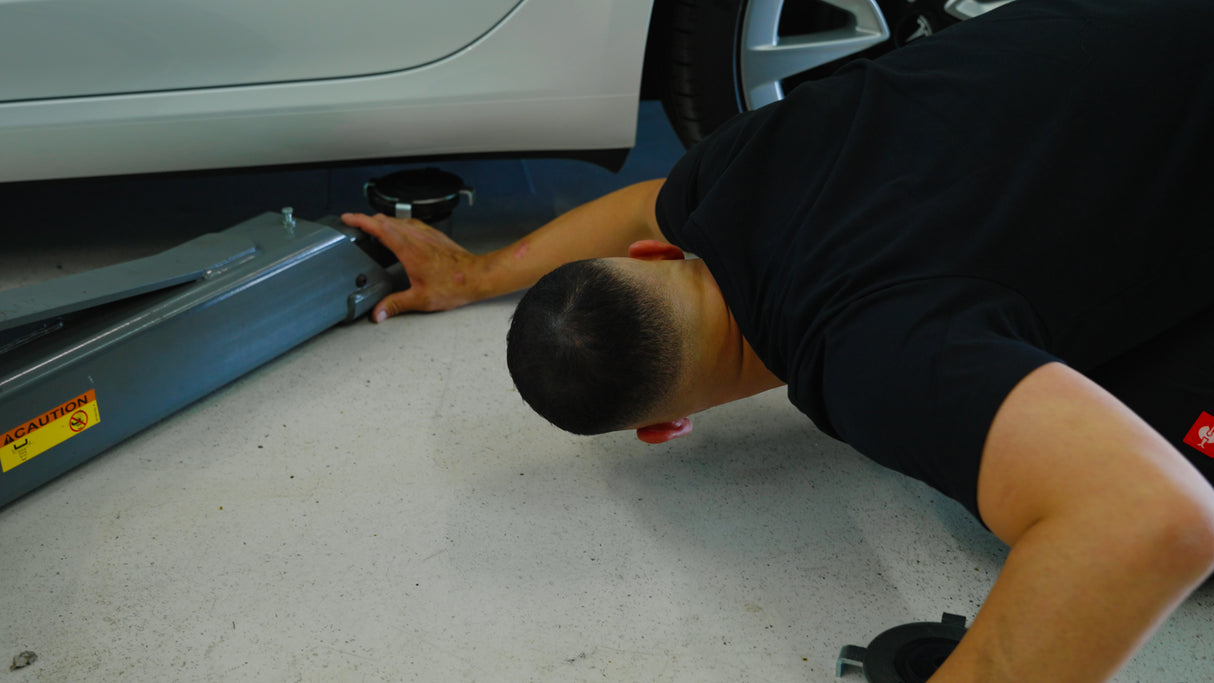

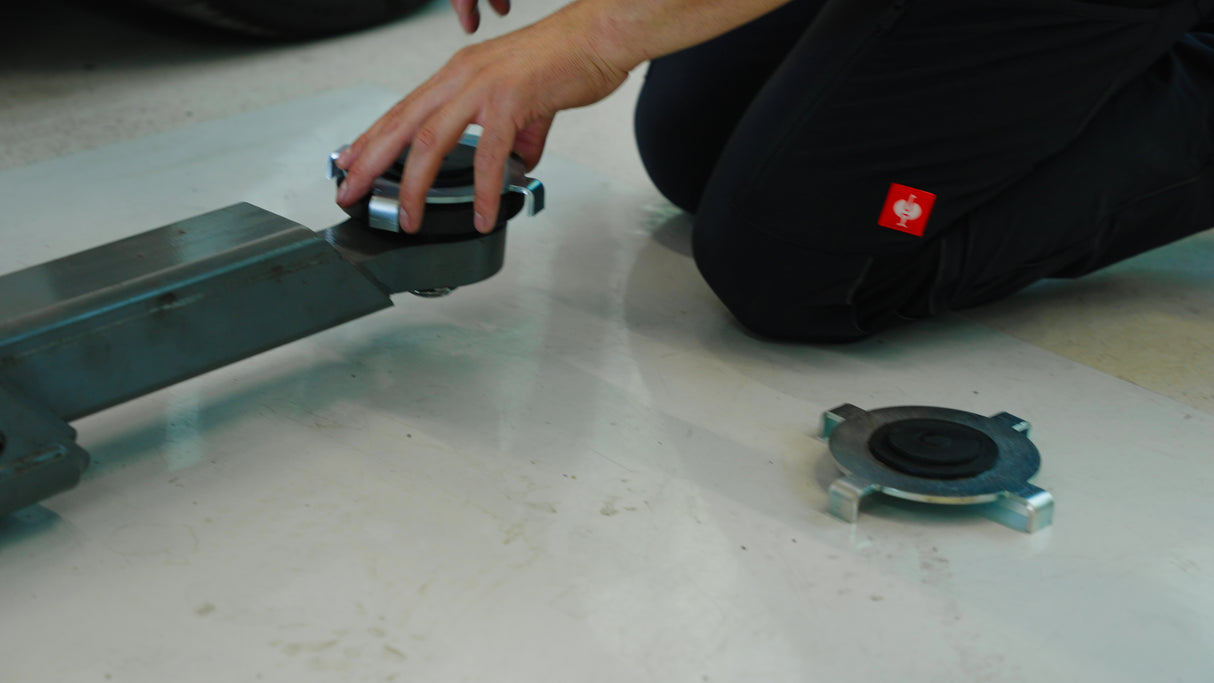

The adapter is placed directly on the rubber pad. The TSL3-AD-MEDIUM adapter is suitable for rubber pads with a diameter of 120mm up to 140mm. The point in the middle shows the lifting point. With a total height of only 13mm, care was taken to ensure that both standard lifts and lifts with increased payload are compatible with the adapter. After use, the adapter can be easily removed again.

Scissor lift application:

The adapter is placed directly on the rubber block. The center elevation must be positioned over the lifting point hole. The TSL3-AD-MEDIUM adapter is suitable for rubber blocks up to 140mm in diameter. We recommend the rubber block 165037 as a base for the adapter. If the distance between the vehicle and the lifting platform is not sufficient for the rubber pad and adapter, we also recommend our access ramp GG-D1000.H50 for an elevated position of the vehicle.

Application jack:

The adapter is placed on the metal disc of the jack or on an existing rubber pad. The TSL3-AD-MEDIUM adapter is suitable for a contact surface of 120mm up to 140mm in diameter.

  • Environmental Resistance

    No disintegration or crumbling of the material, even when in contact with oil, salt, cold, heat, or operating fluids.

  • Perfect Fit

    Thanks to its perfect design, the rubber pad sits securely on the support plate, reliably preventing slipping.

  • Optimal Elasticity

    This rubber pad adapts to the lifting point through slight deformation and then returns to its original shape.

  • Durability

    This rubber pad is designed for professional workshop use and stands out for its robustness and longevity.

Find the Right Rubber Pad

Check the Dimensions Before Ordering

Compare the technical drawing above and the dimensions with those of your old rubber pad to ensure a proper fit. For two-post lifts, the diameter and the height of the support plate, as well as, if applicable, the spacing of the bolt holes, are crucial. For rubber plates, in addition to the external dimensions, the spacing of the holes should be checked. Bolt holes are always measured from center to center.
