Boeck  |  SKU: 17202301MET

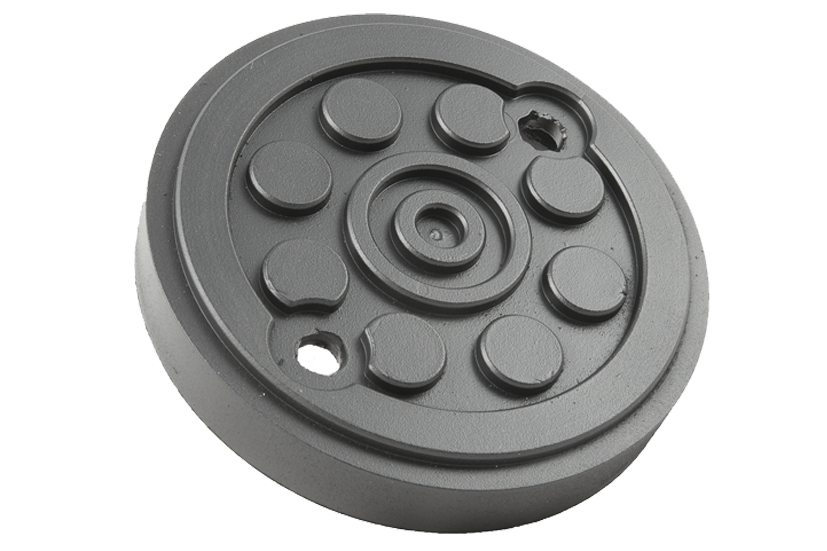

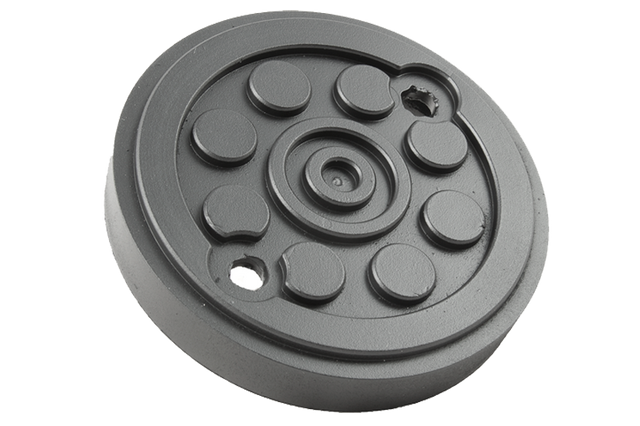

Rubber pad with steel plate suitable for MAHA lifts diameter 120 mm

suitable for these lifts
MAHA | SLIFT
icon_technical_drawing_of_product
outer diameter
ø = 120 mm
inner diameter
a = 113 mm
hole spacing
b = 83 mm
inner height
d = 8 mm
height
h = 22 mm
weight
0.26 kg
reinforced with metal plate

Prices are only visible to dealers. Please log in. Not a customer yet? Please register using our online form.

Create account Login

Die richtige Gummiauflage finden

Maße vor der Bestellung prüfen

Vergleichen Sie die obige technische Zeichnung und die Abmessungen mit den Maßen Ihrer alten Gummiauflage, um sicherzustellen, dass sie passt. Bei 2-Säulen-Hebebühnen sind der Durchmesser und die Höhe des Tragtellers sowie, falls vorhanden, der Abstand der Verschraubungslöcher entscheidend. Bei Gummiplatten sollten neben den Außenmaßen auch die Lochabstände geprüft werden. Verschraubungslöcher werden immer von Lochmitte zu Lochmitte gemessen.

  • Environmental Resistance

    No disintegration or crumbling of the material, even when in contact with oil, salt, cold, heat, or operating fluids.

  • Perfect Fit

    Thanks to its perfect design, the rubber pad sits securely on the support plate, reliably preventing slipping.

  • Optimal Elasticity

    This rubber pad adapts to the lifting point through slight deformation and then returns to its original shape.

  • Durability

    This rubber pad is designed for professional workshop use and stands out for its robustness and longevity.

The rubber pad 17202301MET is the reinforced version of the proven rubber pad 17202301 and offers a significantly longer lifespan thanks to a vulcanized metal plate on the underside. This ensures maximum stability and makes the pad particularly resistant to high loads and extreme stress in workshops with intensive use. A special adhesive, applied before the vulcanization process, creates an extremely durable rubber-metal bond that prevents detachment or premature wear.

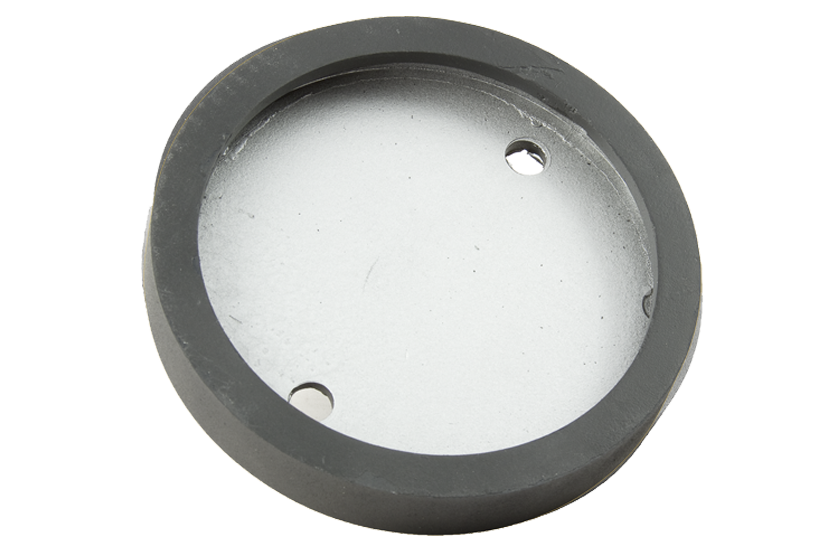

Maximum stability through vulcanized metal plate

Compared to the standard version 17202301, the 17202301MET features an additional vulcanized metal plate on the underside. This reinforcement makes the rubber pad more resistant to mechanical stresses, such as those occurring during frequent lifting of heavy vehicles. The metal plate absorbs and distributes the forces optimally, ensuring longer durability of the rubber material with reduced wear.

Perfect fit with reinforced form-locking connection

The rubber pad has a round shape that fits precisely onto the support plate. In addition to the clamping function, the vulcanized metal plate ensures an even more stable connection with the lift. This reduces wear and allows for a secure hold even under intensive use.

Reliable fastening – no slipping

The 17202301MET is equipped with two screw holes that allow additional fixation to the support plate. This ensures a firm hold, keeping the pad securely in place even under heavy loads, without shifting or deforming.

Durability through High-Performance Rubber

The combination of a high-quality rubber compound and the reinforced metal structure makes the rubber pad particularly durable. The material is specially designed to absorb shear forces and mechanical stress while returning to its original shape after use. This guarantees consistent performance over long periods.

Perfect fit for MAHA and SLIFT lifts

Like its standard counterpart, the 17202301MET is precisely designed for MAHA and SLIFT lifts. Its construction allows for a perfect fit on the support plate, ensuring smooth operation.

Ideal for workshops with high usage frequency

The rubber pad 17202301MET is specially designed for workshops that use their lifts daily and intensively. Its reinforced construction makes it the ideal choice for professional users who require a long-lasting, low-maintenance, and highly stable solution.

Environmentally friendly and produced to the highest standards

Our rubber pads are PFAS-free and produced according to REACH regulations. Regular quality checks ensure consistently high material quality. Additionally, the rubber compound is sourced exclusively from reputable manufacturers to meet the highest environmental and health standards.
