SKU: 02-CONSUL-01-GTRP

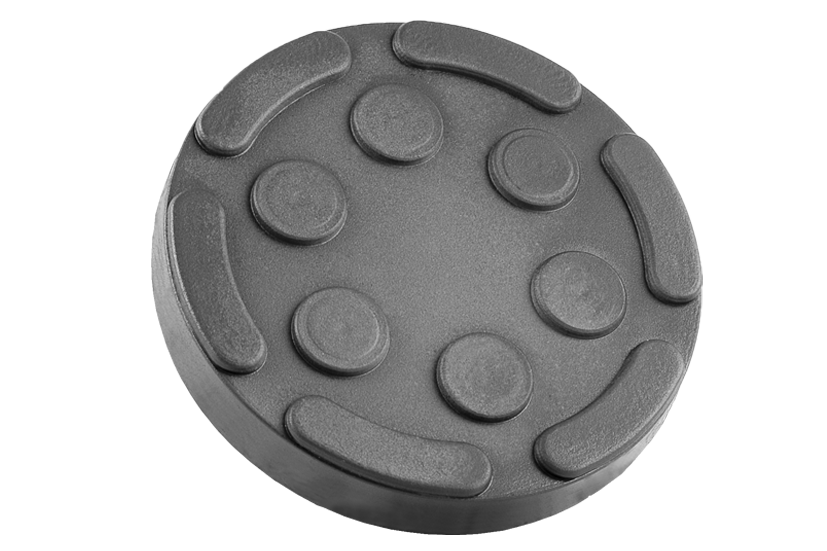

Rubber pad with steel plate suitable for CONSUL ZIPPO lifts diameter 135 mm

Rubber pad with steel plate suitable for CONSUL ZIPPO lifts diameter 135 mm

Prices are only visible for distributors. Are you already registered? Then please log in, if not, then fill out the registration form and we will contact you soon.

Create account Login
  • Free of harmful substances
  • elasticity
  • Oil and environmental resistant
View full details

More information

Weight :0.3 kg
Delivery time : 2-3 Days
Suitable for : BEISSBARTH|CONSUL|HERRMANN|ZIPPO
Outer diameter : Ø = 135 mm
Inner diameter : a = 126 mm
Dimension : d = 8mm
Dimension : e = 10mm

Description

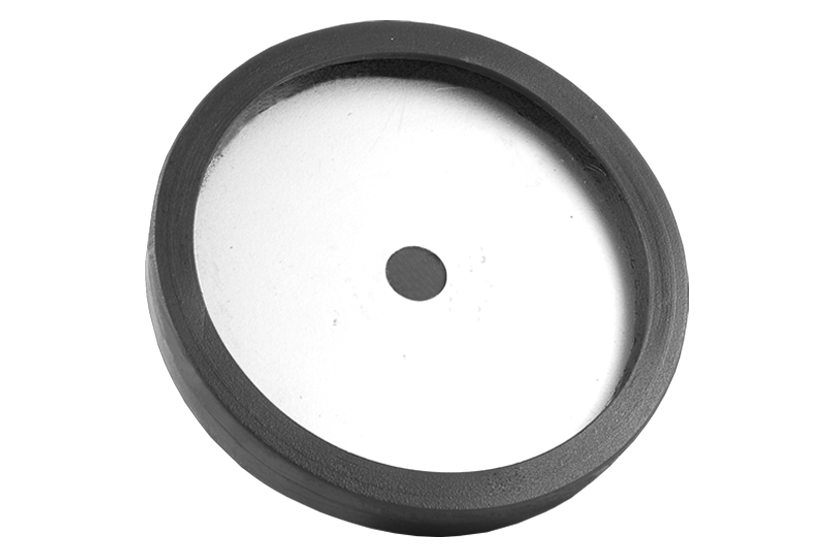

The support plate with exchangeable rubber support mount 02-CONSUL-01-CA now replaces the one-piece support plate with vulcanized rubber for all Beissbarth, Consul and Zippo lifts with swivel arm. The support plate and rubber support mount can be ordered either as a set or the rubber individually. Advantage for the workshop professional: The rubber pads can be changed as needed. In view of rising steel prices, valuable resources can be saved and, in the medium term, up to 70 percent of spare part costs can be saved - because only what is actually worn out is replaced. The system consisting of a support plate and exchangeable rubber support holder offers a high level of flexibility in everyday workshop life while at the same time being user-friendly. If there is an increased need for grip when lifting a vehicle, the standard rubber support mount can be exchanged for the high-grip mount 02-CONSUL-01-GTRP in seconds. Worn or defective rubber support mounts can also be replaced in a very short time during regular safety checks, without the need for lengthy dismantling work. The rubber support is made of a durable rubber mixture. In addition to its durability, a steel plate is vulcanized on the back. Even under maximum load, it guarantees that the rubber cannot be pushed aside.

Free of harmful substances

BÖCK products are produced in accordance with the “REACH” regulation issued by the European Union and are therefore free of harmful substances. We ensure that when using our products, people are protected from health risks and the environment is not polluted by pollutants.

elasticity

Due to the heavy weight of motor vehicles, our rubber products have to withstand enormous pressure. A sign of the best quality are the good elastic properties of our products, which always return to their original shape.

Oil and environmental resistant

Our rubber pads, blocks and plates are exposed to high levels of contamination in the workshops. The materials of our products are therefore designed to be oil, salt, cold and heat resistant.

Shore hardness

Based on our experience, we know which Shore hardness is necessary to ensure that no damage occurs to the vehicle when lifting a vehicle. However, upon customer request, it is also possible to adapt the rubber hardness to specific requirements.
