Boeck  |  SKU: GK125/120-OL

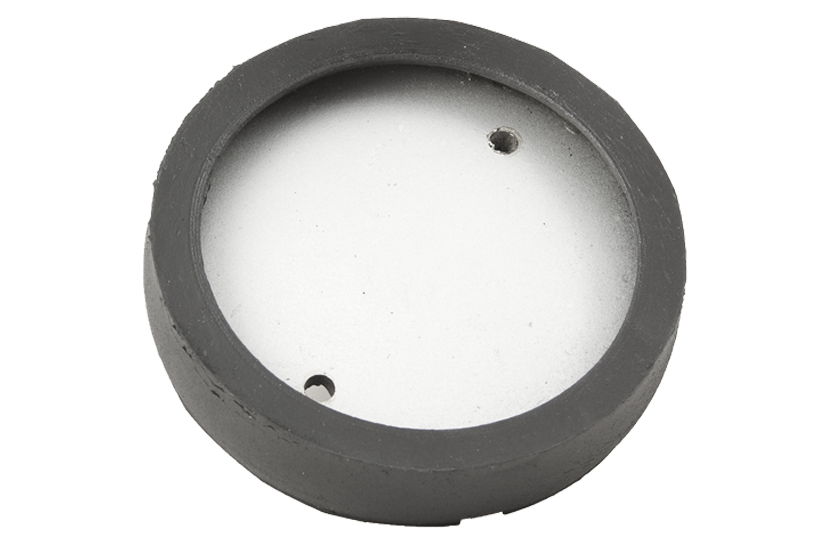

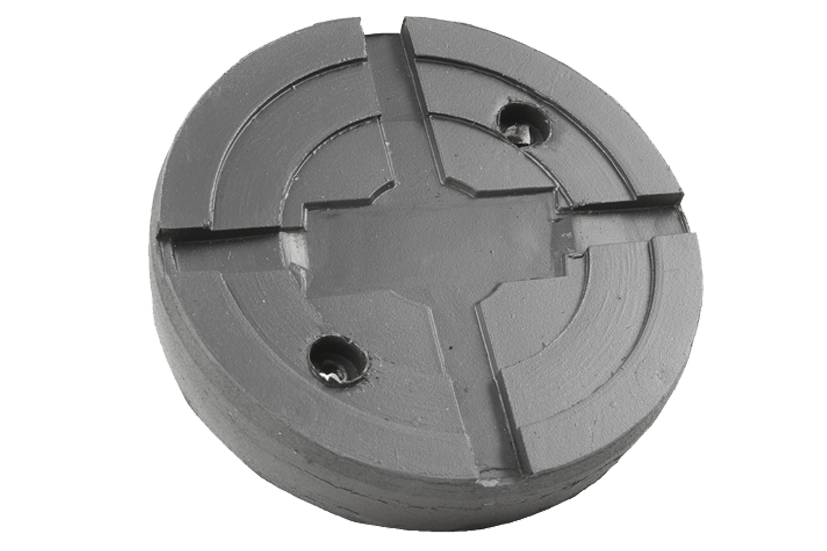

Rubber pad with steel plate suitable for PITLIFT, SLIFT, IME lifting platforms diameter 127 mm

suitable for these lifts
IME | SLIFT | PITLIFT
icon_technical_drawing_of_product
outer diameter
ø = 127 mm
inner diameter
a = 120 mm
hole spacing
b = 83 mm
inner height
d = 9 mm
height
h = 28 mm
weight
0.35 kg
reinforced with metal plate

Prices are only visible to dealers. Please log in. Not a customer yet? Please register using our online form.

Create account Login

This rubber pad consists of a rubber mixture with an integrated metal plate for increased service life and can be used on column lifts and ram lifts with swivel arms.

  • Environmental Resistance

    No disintegration or crumbling of the material, even when in contact with oil, salt, cold, heat, or operating fluids.

  • Perfect Fit

    Thanks to its perfect design, the rubber pad sits securely on the support plate, reliably preventing slipping.

  • Optimal Elasticity

    This rubber pad adapts to the lifting point through slight deformation and then returns to its original shape.

  • Durability

    This rubber pad is designed for professional workshop use and stands out for its robustness and longevity.

Find the Right Rubber Pad

Check the Dimensions Before Ordering

Compare the technical drawing above and the dimensions with those of your old rubber pad to ensure a proper fit. For two-post lifts, the diameter and the height of the support plate, as well as, if applicable, the spacing of the bolt holes, are crucial. For rubber plates, in addition to the external dimensions, the spacing of the holes should be checked. Bolt holes are always measured from center to center.
