Boeck  |  SKU: MAG120/35

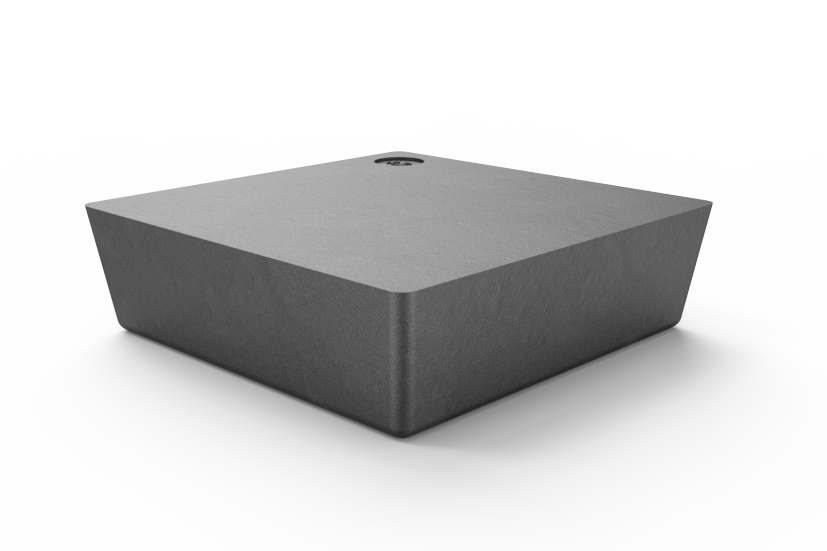

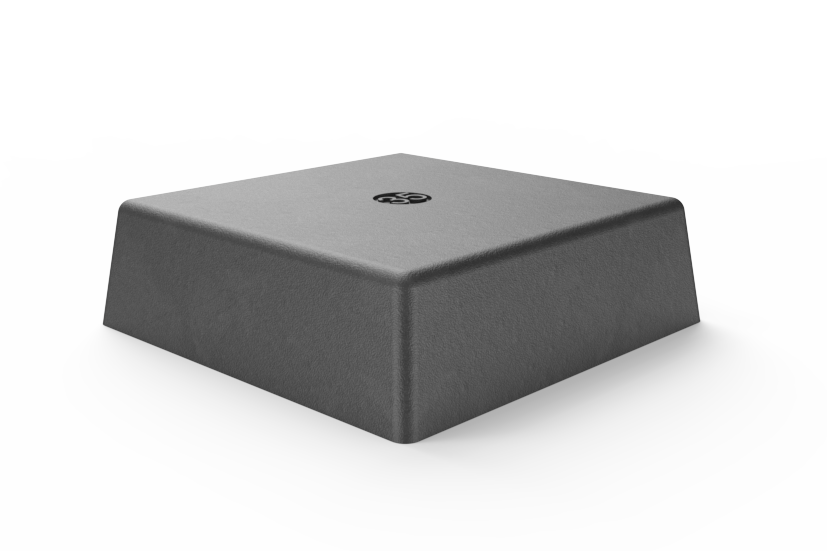

Rubber block with magnet for universal use on scissor lifts, dimensions 120 x 120 x 35 mm

icon_technical_drawing_of_product
lifting surface
b = 110 x 110 mm
base area
a = 120 x 120 mm
height
h = 35 mm
weight
0.75 kg
additional info
mit Magnet

Prices are only visible to dealers. Please log in. Not a customer yet? Please register using our online form.

Create account Login

Die richtige Gummiauflage finden

Maße vor der Bestellung prüfen

Vergleichen Sie die obige technische Zeichnung und die Abmessungen mit den Maßen Ihrer alten Gummiauflage, um sicherzustellen, dass sie passt. Bei 2-Säulen-Hebebühnen sind der Durchmesser und die Höhe des Tragtellers sowie, falls vorhanden, der Abstand der Verschraubungslöcher entscheidend. Bei Gummiplatten sollten neben den Außenmaßen auch die Lochabstände geprüft werden. Verschraubungslöcher werden immer von Lochmitte zu Lochmitte gemessen.

  • Environmental Resistance

    No disintegration or crumbling of the material, even when in contact with oil, salt, cold, heat, or operating fluids.

  • Perfect Fit

    Thanks to its perfect design, the rubber pad sits securely on the support plate, reliably preventing slipping.

  • Optimal Elasticity

    This rubber pad adapts to the lifting point through slight deformation and then returns to its original shape.

  • Durability

    This rubber pad is designed for professional workshop use and stands out for its robustness and longevity.
The rubber block MAG120/35 was developed for gently lifting vehicles for flat beam lifts. A strong magnet is vulcanized into its interior, which prevents the rubber block from slipping after it has been aligned on the flat support of the lift. The highest safety requirements when lifting vehicles can be met in this way.

In addition, the rubber block MAG120/35 contributes significantly to order in the workshop and at the workplace. Thanks to its magnet, it can be stored on vertical metal surfaces of tool cabinets or lockers in a space-saving manner and always within easy reach. Since previously unused space can be used for its storage, it does not require any additional storage space. This makes the rubber block MAG120/35 an ideal accessory for the flat beam holders of column or stamp lifting platforms, even for smaller workshops.

With a height of 35mm, it is also suitable for lifting very low sports cars or lowered vehicles. The block itself is made of a strong petrol and oil-resistant rubber mixture that can withstand the highest demands of everyday workshop life. The magnetic force was also chosen so that the rubber block can be easily removed from metal surfaces without the help of additional tools.
