Boeck  |  SKU: EV-040.XOP

Rubber block for electric and hybrid vehicles for scissor lifts dimensions 120 x 120 x 60 mm

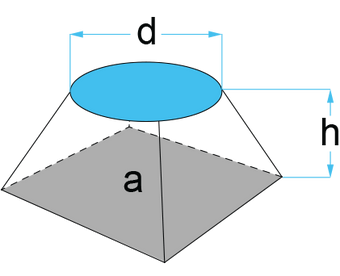

icon_technical_drawing_of_product
lifting surface
b = 60 mm
base area
a = 120 x 120 mm
height
h = 60 mm
weight
0.6 kg
additional info
für Elektrofahrzeuge

Prices are only visible to dealers. Please log in. Not a customer yet? Please register using our online form.

Create account Login

Die richtige Gummiauflage finden

Maße vor der Bestellung prüfen

Vergleichen Sie die obige technische Zeichnung und die Abmessungen mit den Maßen Ihrer alten Gummiauflage, um sicherzustellen, dass sie passt. Bei 2-Säulen-Hebebühnen sind der Durchmesser und die Höhe des Tragtellers sowie, falls vorhanden, der Abstand der Verschraubungslöcher entscheidend. Bei Gummiplatten sollten neben den Außenmaßen auch die Lochabstände geprüft werden. Verschraubungslöcher werden immer von Lochmitte zu Lochmitte gemessen.

  • Environmental Resistance

    No disintegration or crumbling of the material, even when in contact with oil, salt, cold, heat, or operating fluids.

  • Perfect Fit

    Thanks to its perfect design, the rubber pad sits securely on the support plate, reliably preventing slipping.

  • Optimal Elasticity

    This rubber pad adapts to the lifting point through slight deformation and then returns to its original shape.

  • Durability

    This rubber pad is designed for professional workshop use and stands out for its robustness and longevity.
This rubber block with a height of 60 mm was specially developed for the very small support points of the Tesla Model Y. However, if the support points are hit, the robust rubber block can also be used to lift other electric and hybrid vehicles. This makes it versatile for workshops beyond the Tesla model range. Its pyramid-like shape gives it a secure position on the flat beam of the lift. The vehicle mounting point is circular and the contact surface is grooved. The shape and surface structure ensure maximum contact security. The high accuracy of fit ensures, in addition to increased slip resistance, that neither the sensitive underbody paneling nor the drive battery can be damaged by the rubber block holder.
suitable for following cars:

FIAT: 600

FISKER: Ocean

TESLA: 3, Y
