Boeck  |  SKU: PE-900WEISS/GROSS

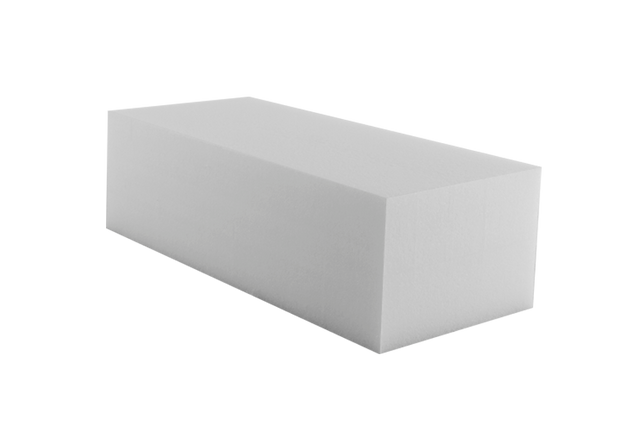

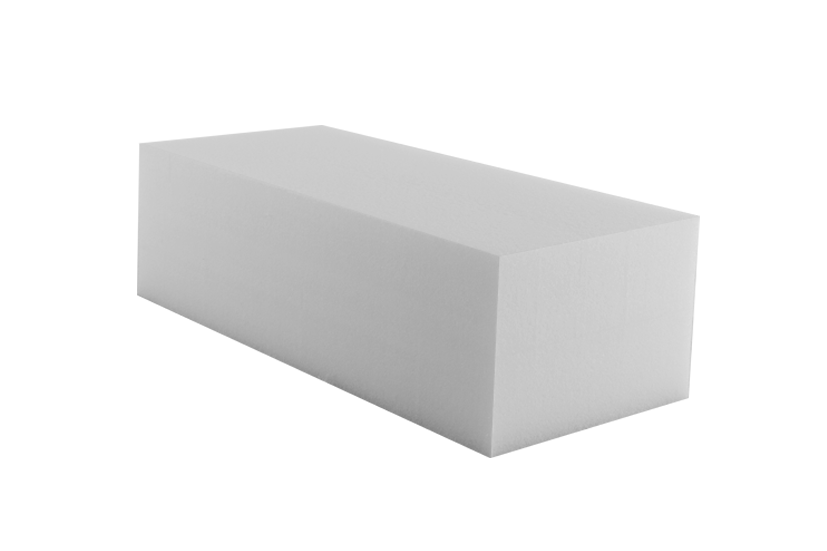

Polymer block for universal use on scissor lifts dimensions 340 x 150 x 100 +/- 5 mm

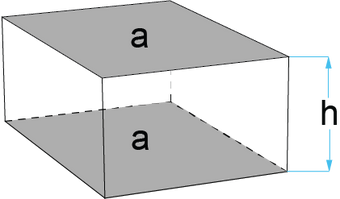

icon_technical_drawing_of_product
lifting surface
b = 340 x 150 mm
base area
a = 340 x 150 mm
height
h = 100 mm
weight
0.75 kg

Prices are only visible to dealers. Please log in. Not a customer yet? Please register using our online form.

Create account Login

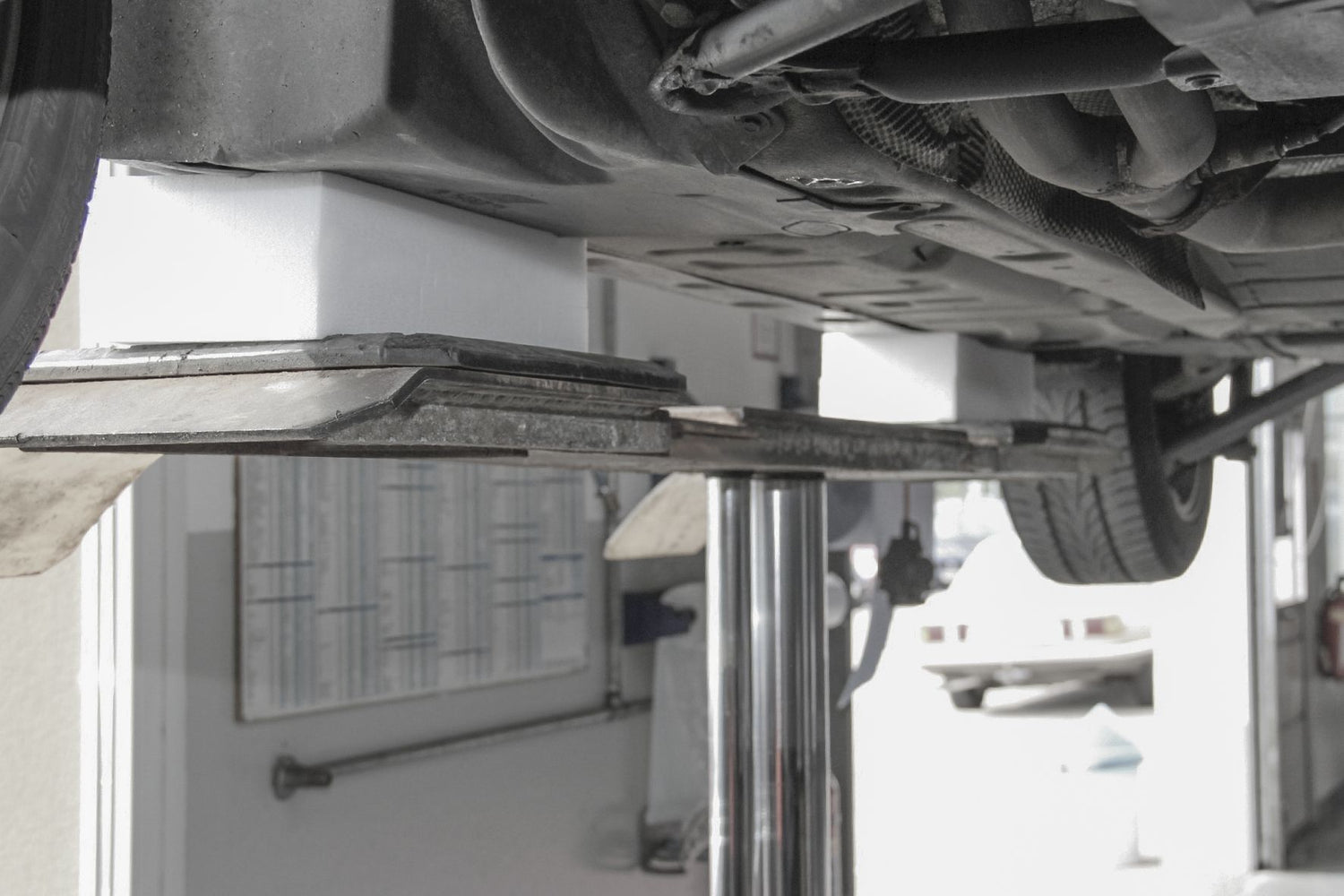

This block is made of very durable, lightweight foam for use on scissor lifts and stamp lifts with flat beams.

  • Environmental Resistance

    No disintegration or crumbling of the material, even when in contact with oil, salt, cold, heat, or operating fluids.

  • Perfect Fit

    Thanks to its perfect design, the rubber pad sits securely on the support plate, reliably preventing slipping.

  • Optimal Elasticity

    This rubber pad adapts to the lifting point through slight deformation and then returns to its original shape.

  • Durability

    This rubber pad is designed for professional workshop use and stands out for its robustness and longevity.

Find the Right Rubber Pad

Check the Dimensions Before Ordering

Compare the technical drawing above and the dimensions with those of your old rubber pad to ensure a proper fit. For two-post lifts, the diameter and the height of the support plate, as well as, if applicable, the spacing of the bolt holes, are crucial. For rubber plates, in addition to the external dimensions, the spacing of the holes should be checked. Bolt holes are always measured from center to center.
